Complete UWB Proximity Warning System with LED Display and 1 Tag SafePerim®
Safety system that warns the driver when another truck or a person approaches the vehicle. UWB measurement provides distance and direction, and up to 10 base units can be installed on one vehicle. With tags in the system, the LED display and audible alert also warn when people move near the vehicle.
9–32 V DC
UWB
Compatibility information
Complete SafePerim® system with one base station, LED display and one tag. Intended for low-speed environments.
Next step
Get a price on your configuration
Your selections above follow into the quote request – we reply with prices.
Already a customer?
Sign in to see your company prices and order directly.
New customer? Create a business account – we review the details and connect you to the right contact person.
Need help choosing?040-30 30 24·order@safedriving.se
The right system for the right vehicle
Applications
- Forklifts and work vehicles in mixed-traffic areas
- Warns of other vehicles and people wearing a SafePerim® tag
Up to 10 base units can be fitted per vehicle. The display and audible signal warn when someone approaches.
Detection zone
Vehicles + people- Directional warning shows where a tag is located around the vehicle
- Three separate risk zones can be adjusted from 0 to 10 metres
- Shows the nearest distance and warns with both light and sound
- Error indication shows if the base station is not operating correctly
- Supports multiple tags and vehicles in the same workspace
- Two outputs can activate external warning devices
Built for professional vehicles
SafePerim® is a safety system that helps the driver detect traffic and people near the vehicle. When another truck with a SafePerim® base station approaches, the LED display and audible alert warn the driver, and up to 10 base units can be installed on one vehicle. With active UWB tags, the system also detects people moving near the vehicle.

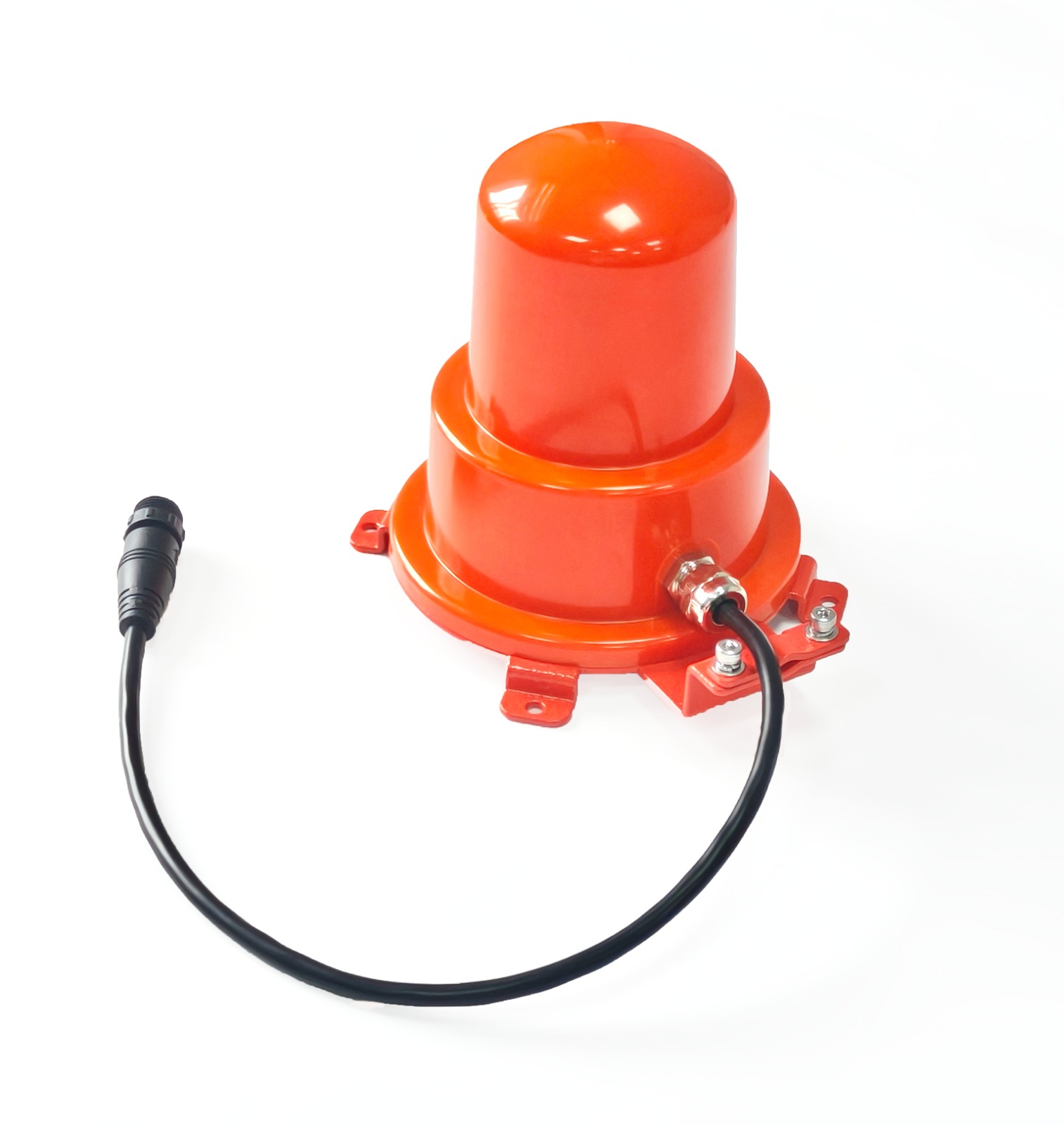

The base station is installed on the vehicle roof with the cable outlet facing rearwards, while the LED display is positioned in the cab.

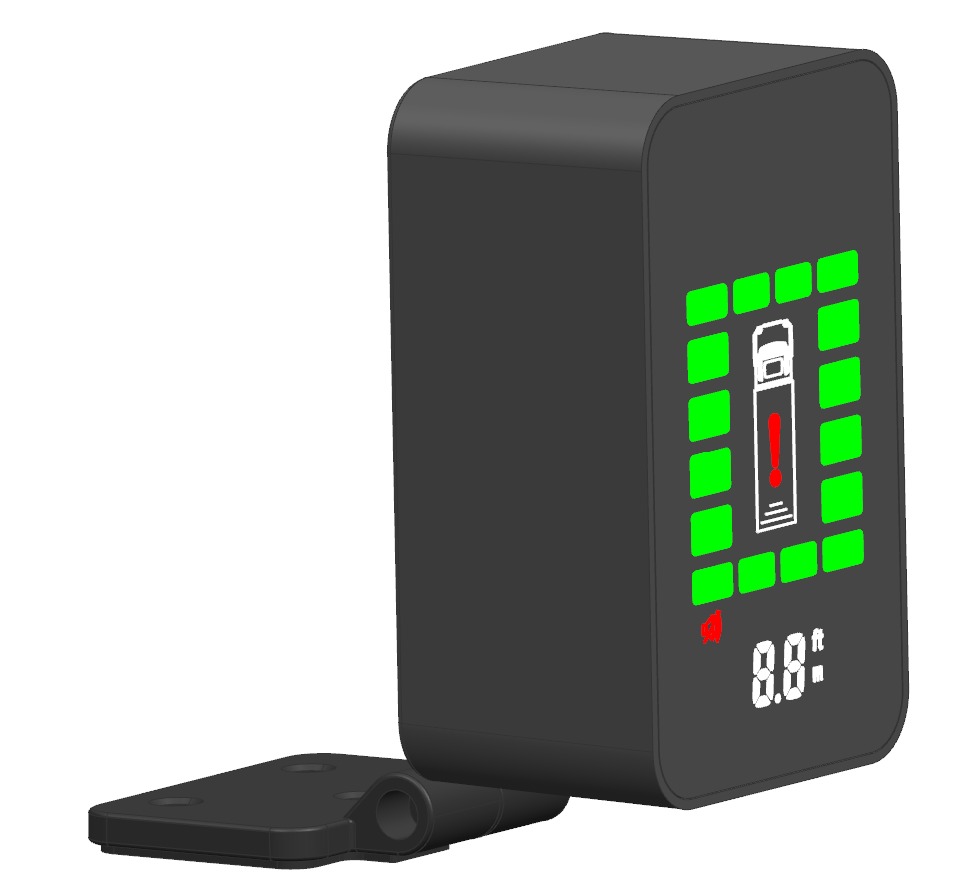

Three individually adjustable warning zones show distance and direction: green for the outer zone, yellow for the middle zone and red for close proximity. The nearest indicator flashes and the display shows distance in metres or feet. The audible alert has four volume settings, including mute. Two external alarm outputs are provided: one activates in the yellow or red zone and the other in the red zone.
The system is intended as a driver aid for low-speed applications and does not replace driver awareness or safe driving. A clear path between the base station and tag provides the best accuracy; metal and other obstructions may affect positioning.
