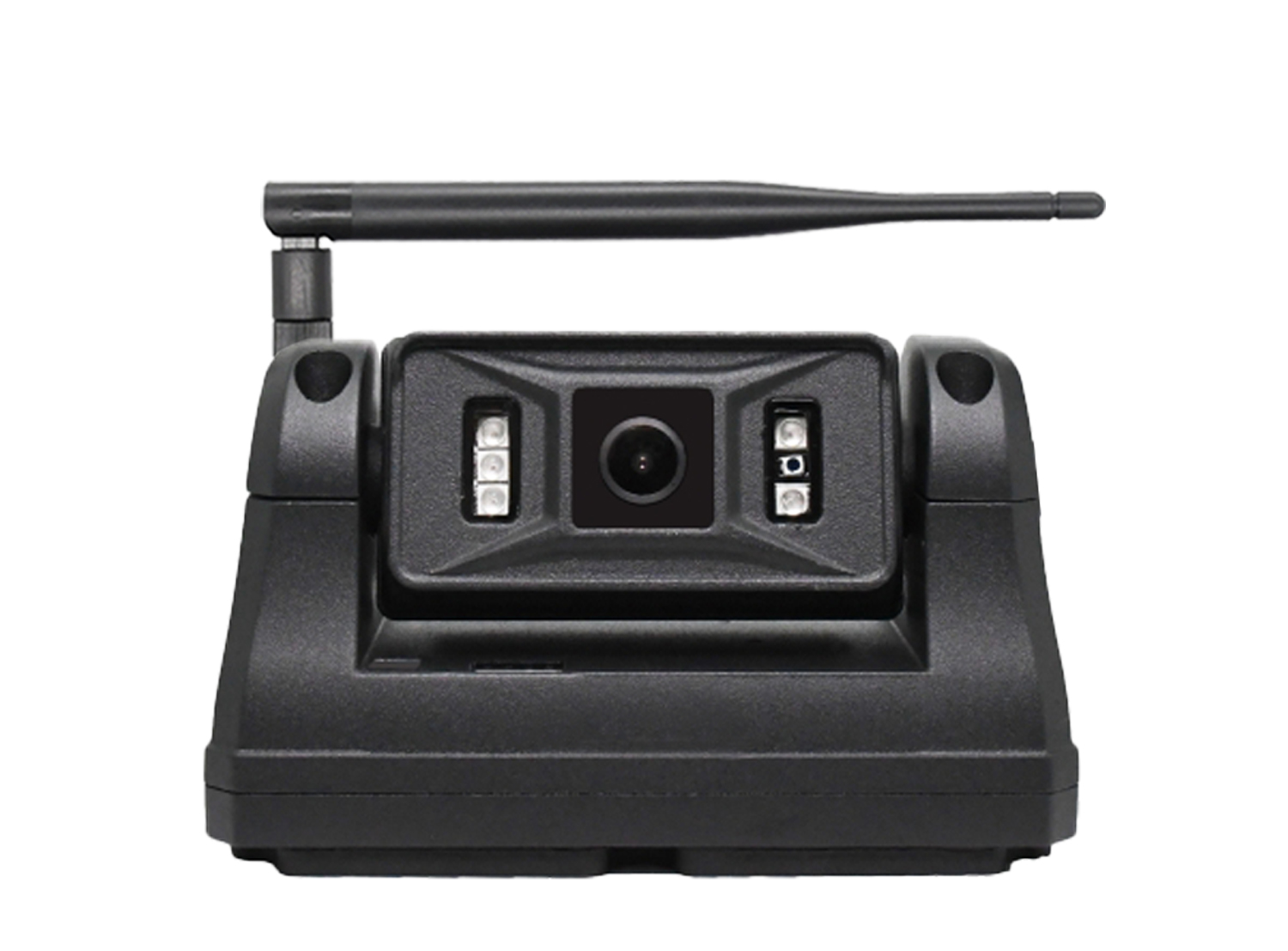

Camera Wireless 6IR 1080P Built-in Battery/Magnetic Mount 130°
Camera Wireless 6IR 1080P Built-in Battery/Magnetic Mount 130°
The 23315 camera is the perfect companion to our innovative wireless rear-view system (model 28339).
It is battery-powered and magnetically mounted, featuring an external antenna for stable wireless transmission even at long range.
Designed for users who need to move the camera between vehicles, it’s ideal for trailers, caravans, motorhomes, and construction machinery.
With 1080p AHD resolution, 6 infrared LEDs for night vision, IP69K waterproof rating, and a robust magnetic base, it delivers reliable performance in all weather conditions.
Compatible with:
Monitor 21322 or system 28339
(Note: system 28339 is the latest generation with enhanced wireless performance and image quality.)
Specifications
Operating Frequency: 2400–2483.5 MHz (external antenna)
Lens: 1/3” Sharp CCD
Video Output: 1080p AHD
Resolution: 1920(H) × 1080(V)
Viewing Angle: 130°
Vibration Rating: 10G
Waterproof Rating: IP69K
Minimum Illumination: 0LUX
Power Supply: DC 5V (battery-powered)
Battery Type: Lithium-polymer
Capacity: 8000 mAh / 3.7 V / 29.6 Wh
Interface: Waterproof Type-C (QC2.0 fast charging) 12V / 1.5A
Indicators: Charging and battery level (25/50/75/100 %)
Power Switch: Touch-activated
Charging Temperature: 0°C to +40°C
Battery Life: >800 cycles
Operating Time: Approx. 20 hours
Mounting: Magnetic base (silicone coated)
Dimensions (W×H×D): 138 × 80 × 70 mm (without antenna)
Operating Temperature: −20°C to +60°C
Storage Temperature: −30°C to +70°C
Infrared LEDs: Yes (6 pcs)
Color: Black
