TotalView® 360° camera systems for professional vehicles
TotalView® combines four to six 1080P cameras into one continuous bird view around the vehicle. The systems are available with an external ECU and AI detection, or with the ECU built into the touch monitor.
- TotalView® Bird View
- 4 or 6 cameras
- 1080P
- 7" / 10.1"
- AI on external ECU
What is TotalView® 360°?
TotalView® is Safe Driving’s 360° platform. Four or six wide-angle cameras are placed around the vehicle and a control unit stitches the images into one overview – a bird view (surround view) on the in-cab touch display.
The entire current generation is 1080P and comes in two versions: 360° AI with an external ECU, and 360° 3D with the ECU built into the monitor. Display size, camera count and 4G are chosen to suit the vehicle.
How the TotalView® bird view worksBird view
The camera images are combined into one overhead view around the vehicle.
Fewer blind spots
Areas outside the driver’s direct view become visible when manoeuvring and reversing.
1080P
The entire current TotalView® generation is delivered in 1080P – a clearer image than older 720P kits.
Built for commercial vehicles
Trucks, buses, construction and special vehicles – in 7" or 10.1" with 4 or 6 cameras.
How a TotalView® 360° system is built
Every complete system includes monitor, control unit, cameras and cabling – calibration is done on the vehicle at installation.
In-cab touch monitor
Touch display in 7" and 10.1" – with built-in ECU or as a display for an external ECU.
Control unit (ECU)
Stitches the camera images into the bird view. External ECU for AI, DVR and 4G – integrated ECU for a compact installation.
Four to six cameras

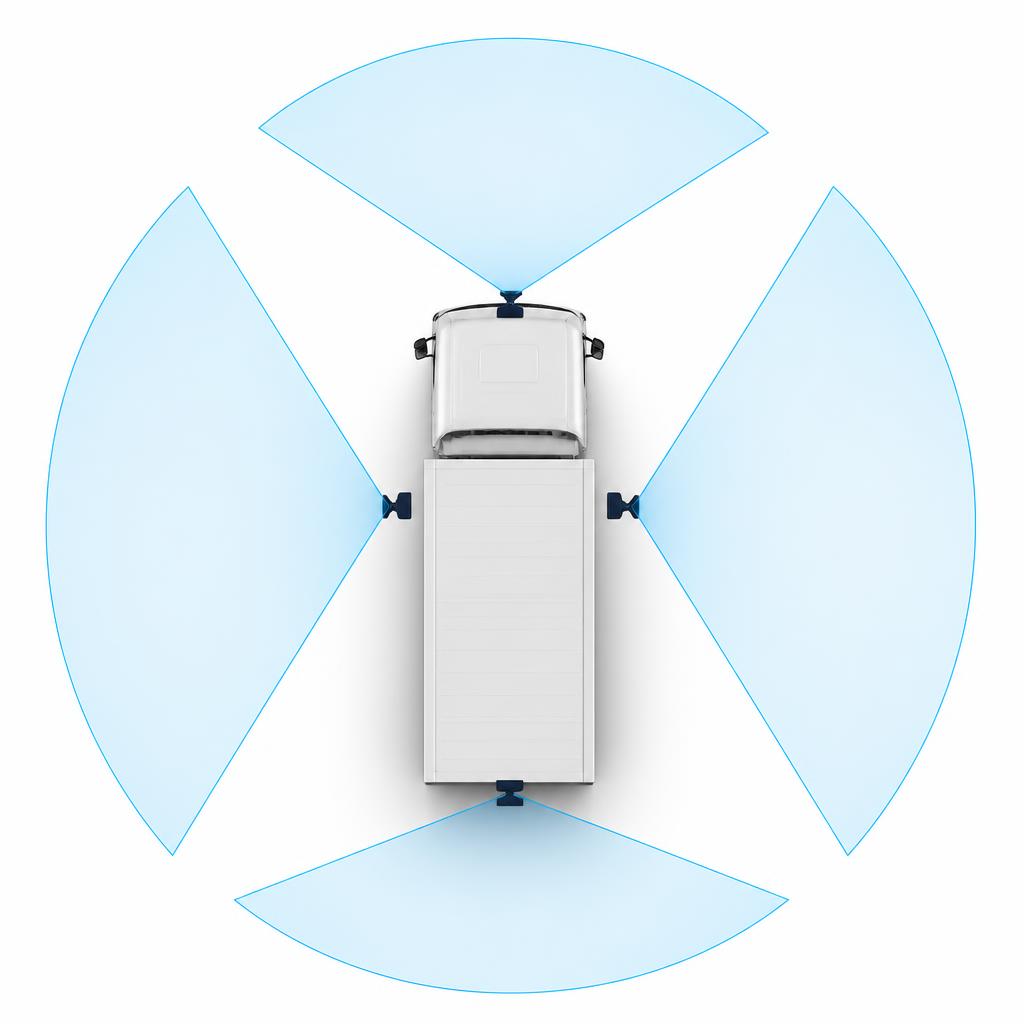

Wide-angle 1080P cameras are mounted front, rear and on the sides. Six cameras are used on longer and wider vehicles.
Calibration on the vehicle
The image is calibrated against the vehicle’s dimensions using calibration mats so the bird view is accurate.
The components are also available separately – 4 monitors and 1 cameras in the TotalView® range.
External or integrated ECU?
TotalView® 360° AI – external ECU
- Bird view around the vehicle in 1080P
- AI detection of people around the vehicle
- Separate control unit – power for recording/DVR and options
- Also available with 4G ECU for connectivity
9 complete systems in the range
See systems with external ECUTotalView® 360° 3D – integrated ECU
- The same 3D bird view in 1080P
- The control unit is built into the touch monitor
- Fewer cables and faster in-cab installation
- Cost-effective choice when AI and DVR are not required
2 complete systems in the range
See integrated systemsNeither version is generally better – the choice depends on the vehicle, cabin space and whether AI, recording and connectivity are needed.
All TotalView® 360° configurations
The same platform in different display sizes, camera counts and with or without 4G.
TotalView® 360° systems
Complete systems with monitor, ECU, cameras and cabling.
From TotalView® 360° to fleet management
The systems with an external ECU are also available with a 4G ECU. The 360° solution can then be extended with recording and connectivity – connected service, SIM and subscription are optional additions.
For integration into existing platforms there is also a 360° variant with IP/RTSP/ONVIF output, without its own monitor. Read about OEM & integration
Can be extended with
- Recording / DVR
- 4G connectivity via 4G ECU
- Remote access
- Access to camera and video material
- Download of recorded material
- Central fleet management
These functions apply to compatible systems – we always verify against the chosen configuration.
Not sure which TotalView® 360° system you need?
We help you choose the right system based on vehicle, display size, camera count and function.
